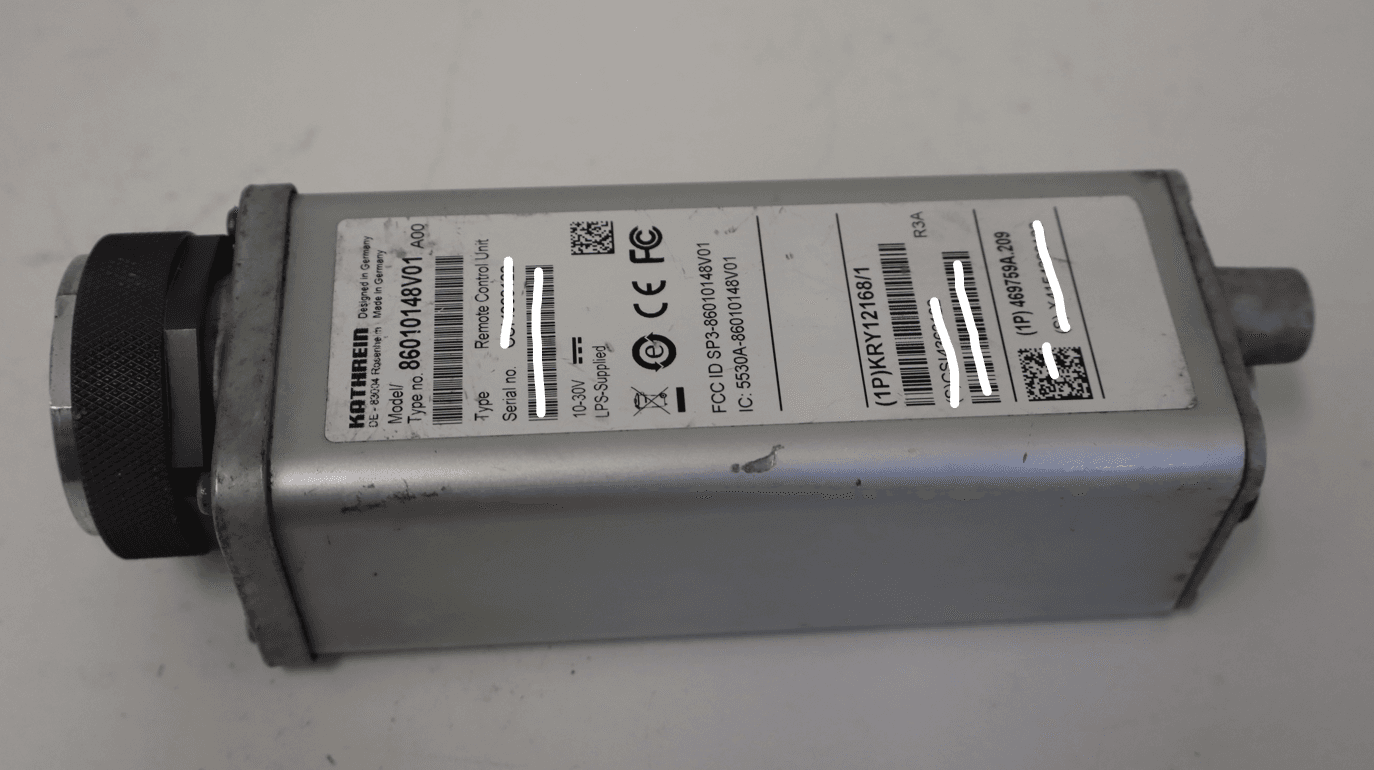

Kathrein 86010148V01 Remote Control Unit

Product Overview
The Kathrein 86010148V01 is a remote control unit designed for integration with base-station antennas featuring electrical down-tilt (RET) adjustment. It supports standard telecom remote-tilt communications via AISG 1.1 and 3GPP/AISG 2.0, and offers compact outdoor-rated installation for antenna sites where remote tilt control and daisy-chain capability are required.

Technical Specification Highlights
• Model number: 86010148V01
• Protocol compliance: AISG 1.1 & 3GPP/AISG 2.0 (factory 2.0)
• Input voltage: 10 – 30 V DC
• Power consumption: <1 W standby, <10 W motor active
• Connectors: 2 × 8-pin IEC 60130-9 (daisy-chain in/out)
• Hardware interface: RS-485A/B, power supply pins, DC return pin
• Tilt adjustment full range: ~40 s typical
• Mechanical endurance: >50,000 cycles
• Operating temperature: –40 °C … +60 °C
• Protection class: IP24
• Lightning protection (AISG): 2.5 kA (10/350 µs) & 8 kA (8/20 µs)
• Housing: Aluminium anodised profile; aluminium die-cast coated cover
• Weight: approx. 0.5 kg
• Dimensions (H × W × D): approx. 177.5 × 59.5 × 49.5 mm
• Application: Outdoor RET control module for base-station antennas.

More information is shown here.
